Ganter Normelemente GN 4490-ZD-68-1-SW Ball Catch, Black, Pack of 1
4.0 (52 items)
Limited Time SaleUS$15.32 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221615596 | Release Date | 2026/05/03 | List Price | US$10.21 | Model Number | 221615596 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

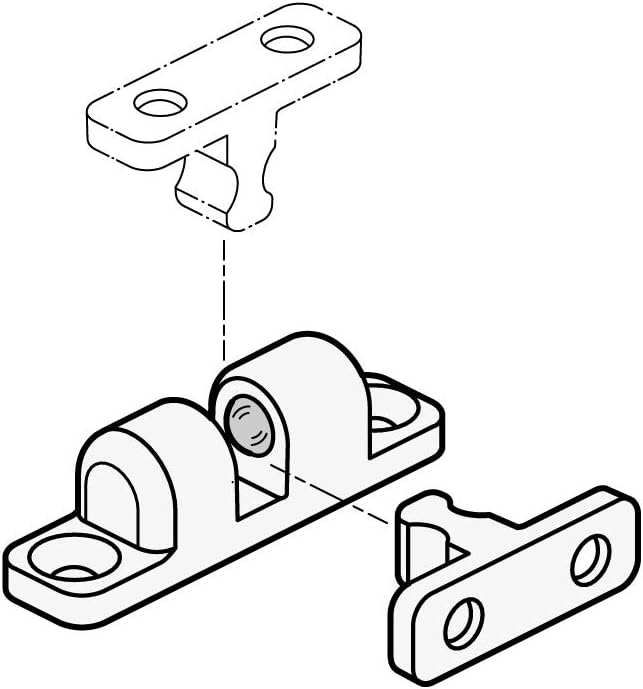

Ball catches GN 4490 are e.g. for closing flaps and doors that need to be opened or closed frequently and easily. They consist of a ball housing and a holding piece that is locked into the ball housing on the side or from the front, whereby the installation position can be selected as desired. In addition to conventional applications, the solid and beautifully designed ball catches are also used in technical environments. When used on profile systems, the groove width n specified in the table must not be undershot.
- Die-cast zinc, plastic-coated, black, RAL 9005, textured matt
- Stainless steel ball, rust-proof, A2
- Spring stainless steel, rust-proof, 1.4310
- Plastic ball guide
| Brand | Ganter Normelemente |
|---|---|
| Color | Black |
| Model | GN 4490-ZD-68-1-SW |
| Pin Type | Bullet Snapper |
| Size Name | 1 Stück |
| Unit Count | 1.0 Count |
| Part Number | GN 4490-ZD-68-1-SW |
| Finish Types | frosted |
| Manufacturer | Ganter Normelemente (GANTU) |
| Fastener Type | snap-fit |
| Material Type | Ball housing zinc die-cast, plastic-coated Stainless steel ball, rust-proof, A2 Spring stainless steel, rust-proof, 1.4310 Plastic ball guide |
| Item Type Name | Ball Catch |
| Item Dimensions | 2.68 x 0.57 x 0.43 inches |
| Number Of Items | 1 |
| Number of Pieces | 1 |
| Screw Head Style | rund |
| Included Components | 1 piece |
