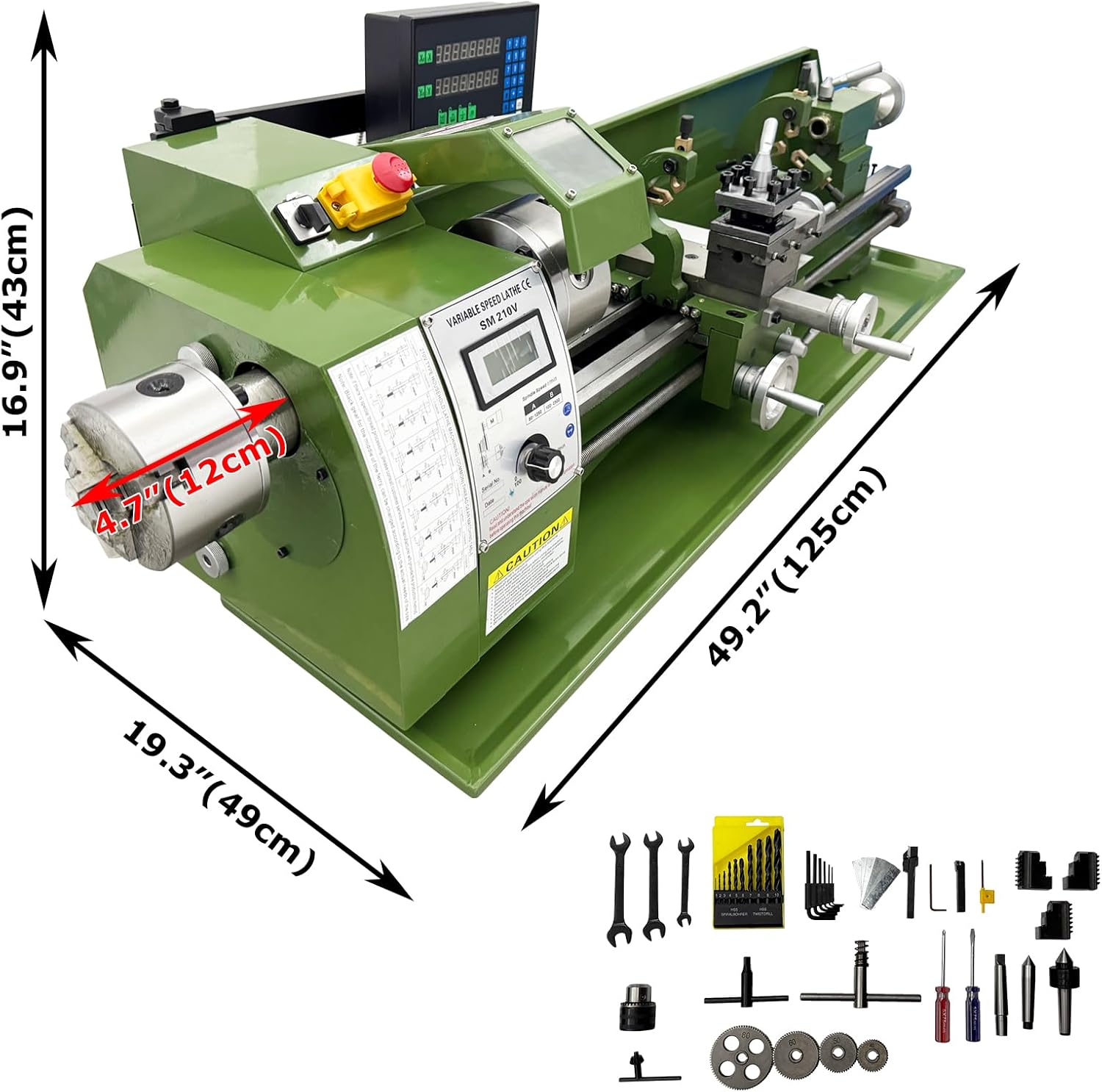

Precision Metal Lathe Inch Thread Metal Benchtop Lathe with 1100W Brushless Motor and Grating Ruler Double Chuck 8"x29.5" 50-2500rpm 110V

Product ParametersVoltage: AC110V (Brushless Motor) Power: 1100W(1.5HP) Swing Over Bed: 8.27"(210mm) Concentricity tolerance: 0.03mm-0.05mm Rotary diameter of tool rest: 5.51"(140mm) Spindle bore: Right side:1.50"(38mm) Left side:1.26"(32mm) Max clamping diameter of right chuck: 4.92"(125mm) Max clamping diameter of left chuck: 3.94"(100mm) Width of lathe bed: 3.94"(100mm) Thread standard: Inch screw thread Number of Spindle Speeds: Infinitely variable speeds Range of Inch Threads: 8-44T.P.I Range of metric threads: 0.5mm-3mm Spindle taper: MT3 Knife rest labour: Horizontal four-station Spindle rotation speed: 50-2500rpm Precision of the spindle: 0.02mm Automatic feed range: 0.1mm-0.2mm Tail frame taper: MT2 Maximum stroke of tool rest plate: 2.16"(55mm) Maximum stroke of middle plate: 2.95"(75mm) Maximum stroke of bottom plate: 26.77"(680mm) Maximum stroke of tailstock sleeve: 2.36"(60mm) Package size: 52"*24"*22"(132cm*61cm*56cm) Net weight/Gross weight: 165.3lbs(75kg)/218.3lbs(99kg)

• Grating Ruler and Control Panel: The precision metal lathe has a two-axis digital display grating ruler to measure and control the angles or lengths, with an accuracy of up to 0.005mm. The spindle rotation speed is divided into two adjustable gears: 50-1250rpm and 1250-2500rpm, which can be observed through the control panel in real time
• High Processing Accuracy: The benchtop lathe is equipped with two chucks on the left side, with the concentricity of 0.03-0.05mm, which can process longer objects. The processing accuracy is high especially for shaft and pipe part. The tailstock is movable and fixable with a maximum center distance of 27.5" at the far right. The lathe can make accurate operation by adjusting set screws, with the MT#2 taper in tailstock spindle
• 4-Way Tool Post: The metal lathe adopts the adjustable 4-way tool post, which allows you to easily change the cutting tools. The 8 screws makes it better grip the tool and finish the machining efficiently
• Reliable Design: On the top of the lathe is designed with the forward and reverse switch, start and emergency stop switch. The power can be immediately cut off supply in case of emergency, ensuring the operation reliability
• Wide Application: The metal lathe is mainly used for processing the end face of various rotary surfaces, such as turning inside and outside cylindrical surface, cone surface, ring groove and forming turning surface, turning end face and all kinds of commonly used inch thread
